Ubuntu Server on the NVIDIA DGX Spark (Without the Desktop)

When you buy an NVIDIA DGX Spark or an ASUS Ascent GX10, it ships with DGX OS. DGX OS is NVIDIA’s managed Ubuntu image, and it is fine - if you want a full GNOME desktop on an AI box.

I did not want that.

The GB10 has 128 GB of unified memory shared between the CPU and GPU over NVLink-C2C. Every gigabyte the OS and desktop environment consume is a gigabyte not available to your model. On the DGX OS default image with GNOME idle, you are already down to around 116 GiB before you have loaded anything. With Ubuntu Server (minimized), you start with about 118 GiB - and the idle power draw drops by roughly 5-8 W too.

For 200B-parameter models, that memory is better spent on the workload.

So I put the process in one place: a clean Ubuntu 24.04 Server install with the same NVIDIA drivers, the same CUDA stack, and the same Docker + NVIDIA Container Toolkit, just without the desktop. It covers the Ubuntu install, ConnectX-7 networking, dual-node setup, and an Ansible playbook that takes over after the initial OS install.

The repo is at github.com/timothystewart6/ubuntu-gb10.

If your next step after the OS is serving models, I also have a GB10-focused vLLM image at github.com/timothystewart6/vllm-gb10 and the setup notes in Running the Latest vLLM on the NVIDIA DGX Spark.

---

What machines this covers

The GB10 Grace Blackwell Superchip shows up in a few different partner systems. The same setup applies to all of them:

• ASUS Ascent GX10 (used to write this guide)
• NVIDIA DGX Spark
• Lenovo ThinkStation GB10
• Dell, HP, MSI, Gigabyte, and other GB10 OEM systems

They all share the same ARM64 SoC. This is not x86_64. Every ISO, package URL, and repo reference here is for arm64 specifically. Mix in x86 packages and the failures get weird fast.

---

Why not just use the DGX OS installer

DGX OS is not bad. For a first-time GX10 owner, it is the lowest-friction path to a working NVIDIA stack. The drivers, CUDA, Docker, and the Container Toolkit are already there, and everything works out of the box.

The reasons I moved away from it:

Memory footprint. DGX OS ships with a full GNOME desktop. On a machine where the CPU and GPU share the same physical memory, that desktop costs you model capacity. Measured on identical GX10 units:

Configuration	RAM used at idle	Available for models
DGX OS 7 + GNOME (idle)	~4.7 GiB	~116 GiB
DGX OS 7 + GNOME (apps open)	~5.8 GiB	~115 GiB
Ubuntu Server 24.04 minimized (this guide)	~2.9 GiB	~118 GiB

Xorg plus gnome-shell plus gnome-remote-desktop pulls about 340 MB of the shared GPU memory on its own, before you start doing any AI work.

Power draw. The GNOME desktop stack adds roughly 5-8 W at idle, measured at the wall. The savings are not enormous on a system that already idles at 40-45 W (the ConnectX-7 NIC alone accounts for about half of that), but they compound when the machine is running 24/7.

Update cadence. DGX OS updates on NVIDIA’s schedule. Ubuntu Server updates on Canonical’s LTS schedule plus NVIDIA’s own driver repositories, which you control independently.

Clean rebuilds. I also wanted a clean starting point if I ever needed to wipe the machine. I did not want to reinstall NVIDIA’s OS, update whatever tooling shipped with it, and then work back toward the setup I actually wanted. With the playbook, a rebuild starts from fresh Ubuntu Server and installs the current stack automatically.

Starting point. DGX OS 7 is based on Ubuntu 24.04 too. The difference is that this path starts from the minimized Ubuntu Server installer, then adds the NVIDIA stack intentionally instead of starting from NVIDIA’s full desktop image.

---

The NVIDIA stack you end up with

I based this on the same component versions as DGX OS 7.5.0 (June 2026). GB10 partner systems may trail the DGX Spark Founders Edition by a release or two, but the same packages apply.

Component	Version
Ubuntu Base	24.04 LTS (arm64)
Canonical Kernel	6.17.0-1021-nvidia (HWE) - linux-nvidia-hwe-24.04
NVIDIA GPU Driver	580.167.08 (open kernel modules)
NVIDIA CUDA Toolkit	13.0.2
Docker CE	latest from NVIDIA repos
NVIDIA Container Toolkit	latest from NVIDIA repos
DOCA-OFED (ConnectX-7)	optional, via nvidia-system-mlnx-drivers

Before you chase a phantom memory bug, know this about the GB10:

nvidia-smi will show Memory-Usage: Not Supported in the memory field. On unified memory (iGPU/UMA) platforms, the GPU and CPU share the same DRAM, so there is no dedicated VRAM pool to report. It is not an error.

---

Two paths: manual or Ansible

If you want the faster path, use the Ansible playbook in the repo. It starts from a fresh Ubuntu Server install, handles the rest of the setup, and only sends you back to the console for Secure Boot MOK enrollment.

I am keeping the manual steps here because they make the install easier to reason about, especially if you are setting up one machine and do not want Ansible in the mix.

---

Step 1 - Install Ubuntu Server (minimized, arm64)

You need the Ubuntu Server arm64 ISO, not the standard amd64 one. At the time of writing, the current release is 24.04.4.

# Download the arm64 ISO and the official checksum file
wget https://cdimage.ubuntu.com/releases/24.04/release/ubuntu-24.04.4-live-server-arm64.iso
wget https://cdimage.ubuntu.com/releases/24.04/release/SHA256SUMS

# Verify the download - should print: OK
echo "9a6ce6d7e66c8abed24d24944570a495caca80b3b0007df02818e13829f27f32  ubuntu-24.04.4-live-server-arm64.iso" | sha256sum --check

Write it to a USB drive and boot the GX10 from USB.

Warning: At the GRUB menu, select “Ubuntu Server with the HWE kernel” - not the default entry. The standard kernel fails to find the live filesystem on the GX10’s USB controller. If you see “Unable to find a medium containing a live file system”, reboot and select HWE. If HWE also fails, press e on the HWE entry, find the linux line, append rootdelay=30, and boot with Ctrl+X.

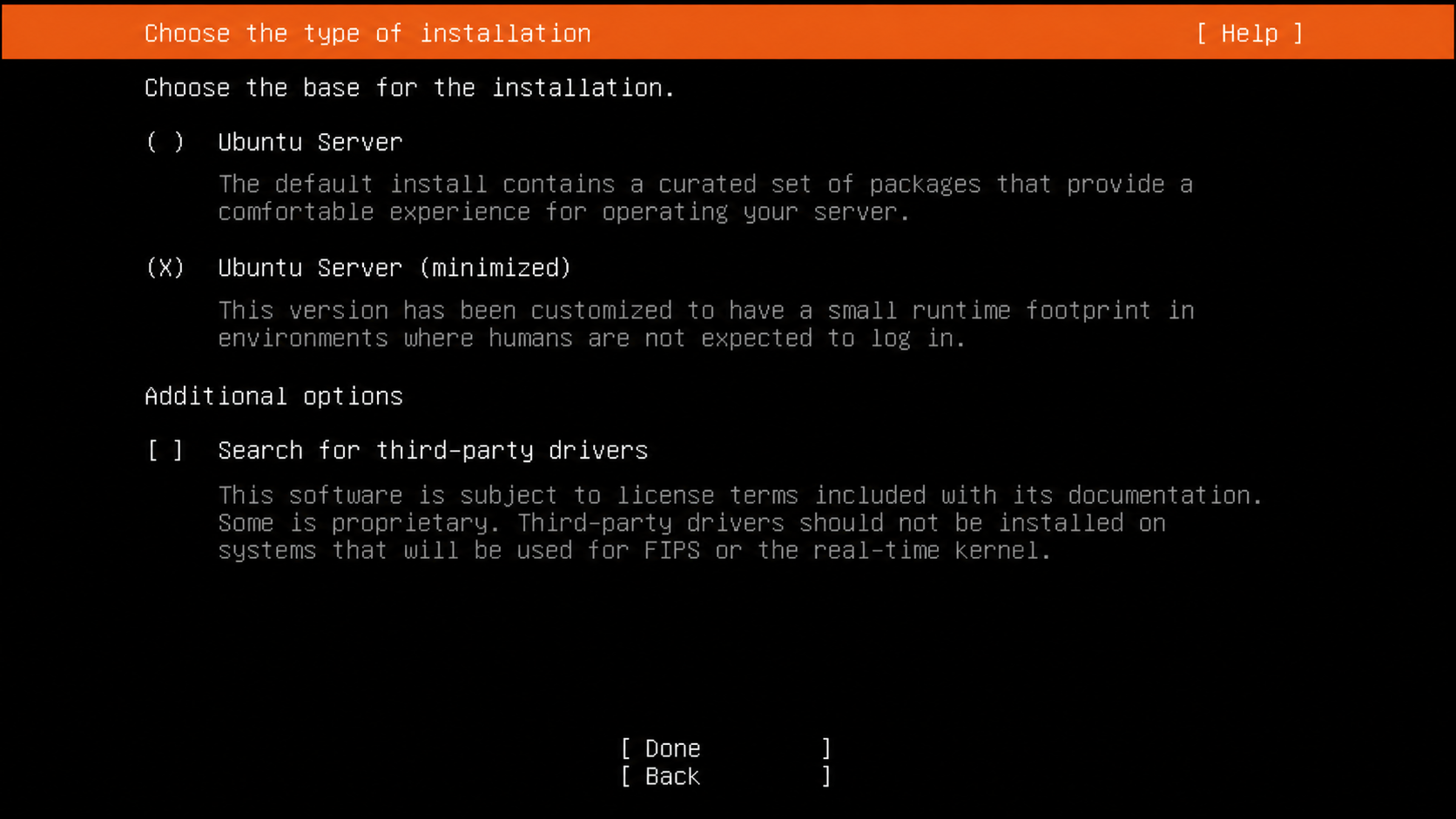

Info: In the installer, when asked for installation type, select “Ubuntu Server (minimized)” - not the default “Ubuntu Server”. I wanted to start with as little tooling as possible, then add only the pieces this machine actually needs. Fewer installed packages means less patching, less bloat, and less attack surface. Everything here works on the minimized install, and it keeps the machine focused on GPU workloads.

The minimized install option is the important choice here: start small, then add only the NVIDIA stack you need.

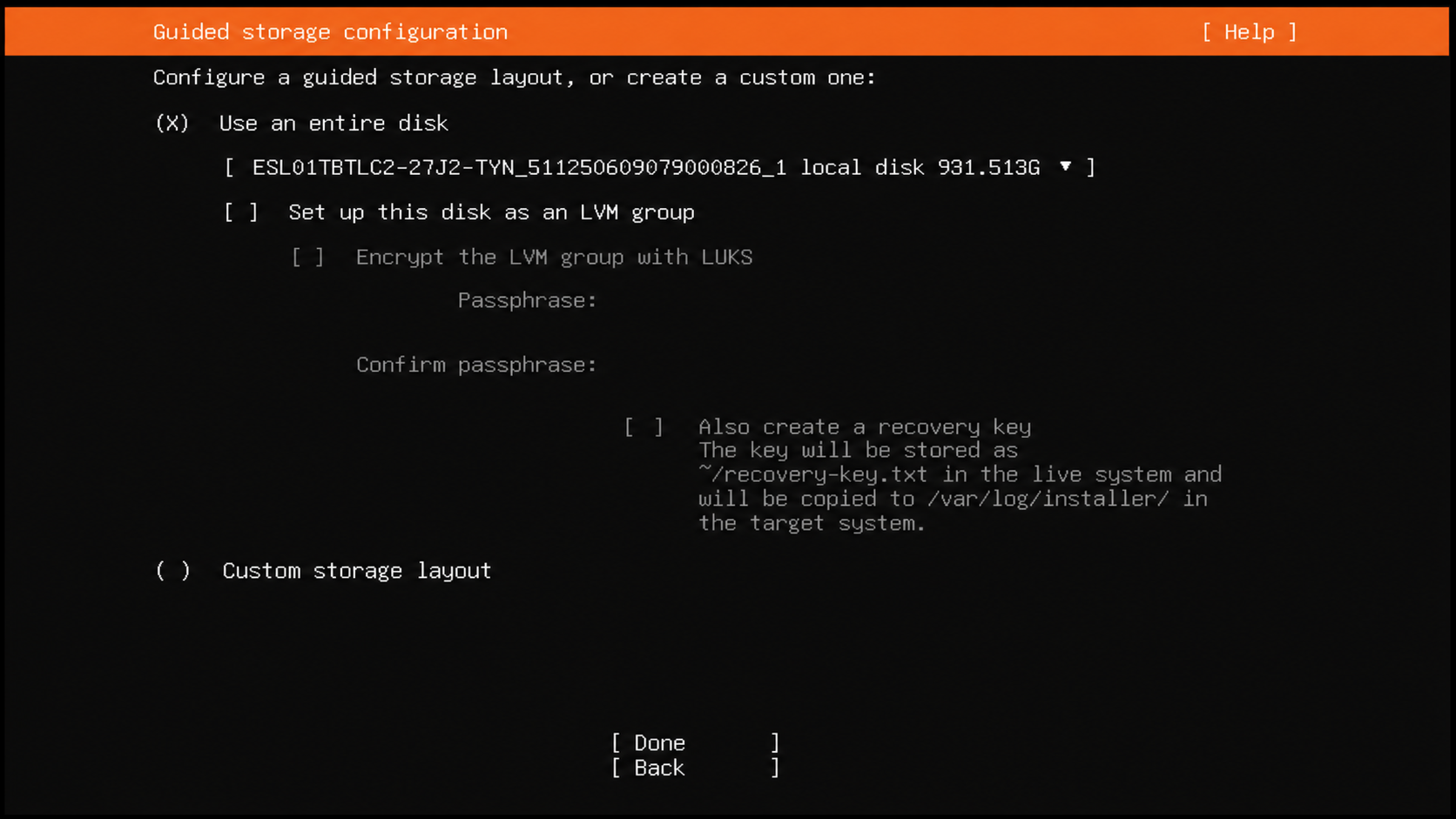

For storage, I used the whole disk and left LVM unchecked. Nothing in this setup needs a custom layout, and keeping storage boring makes rebuilds easier.

A simple whole-disk layout is enough for this build.

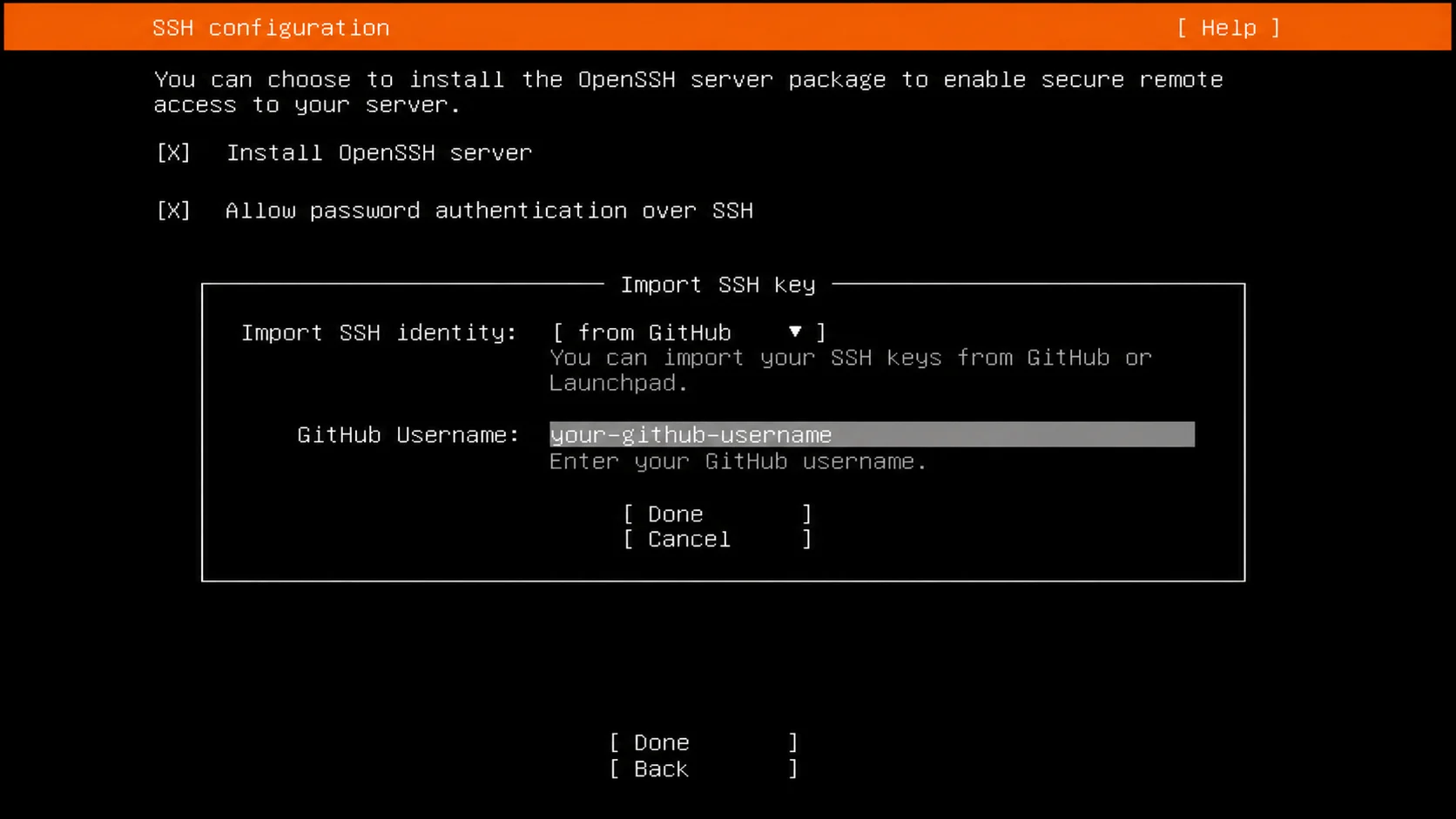

Install OpenSSH server during setup, especially if you plan to use the Ansible path later. Importing a GitHub SSH key here also saves a little console work after first boot.

Install OpenSSH during setup so the rest can be finished over the network.

Warning: At the snap step, do not install Docker from snap. Docker CE comes from apt later. Leave all snaps unselected.

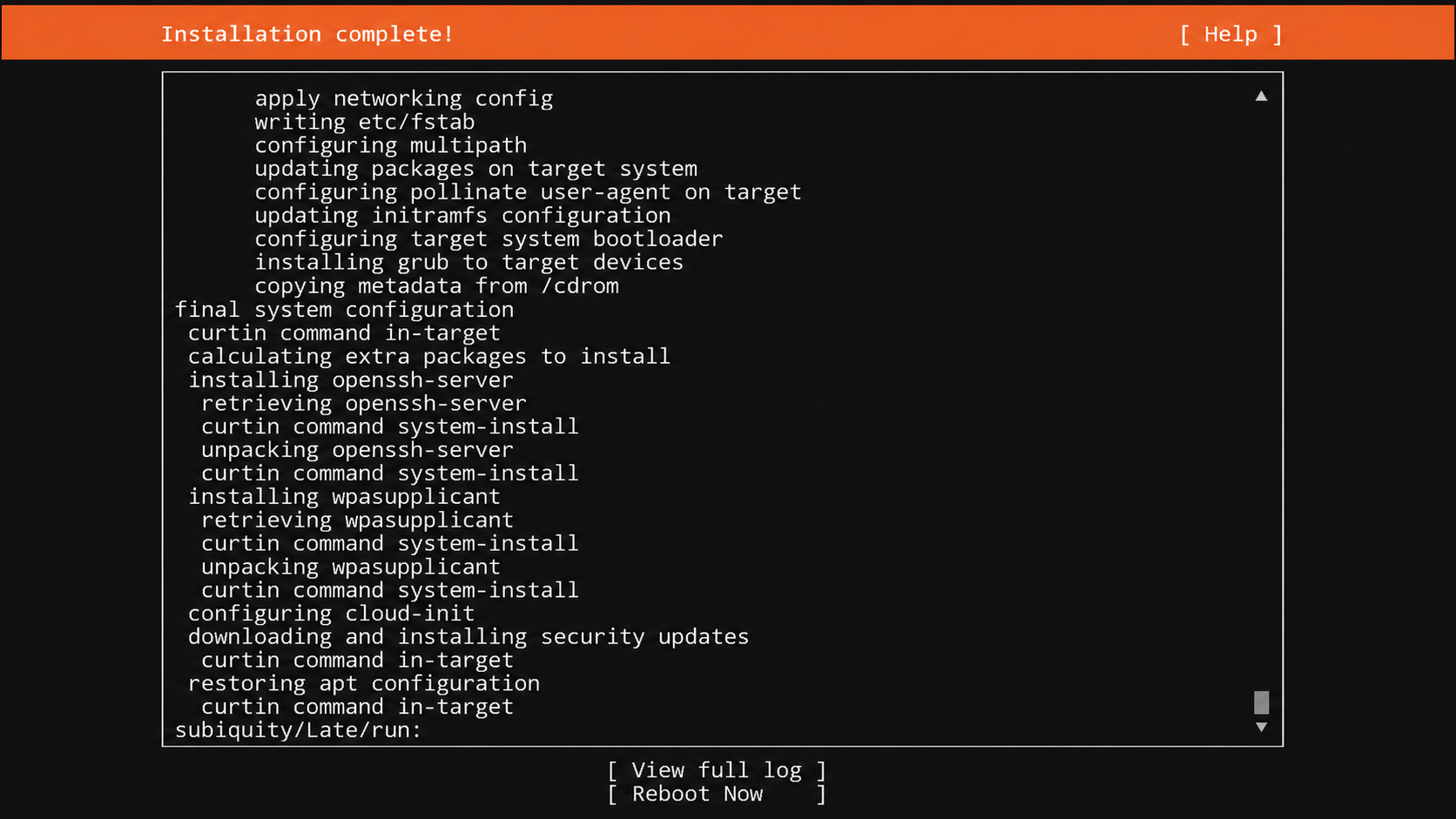

Once the installer finishes, reboot into the newly installed server image.

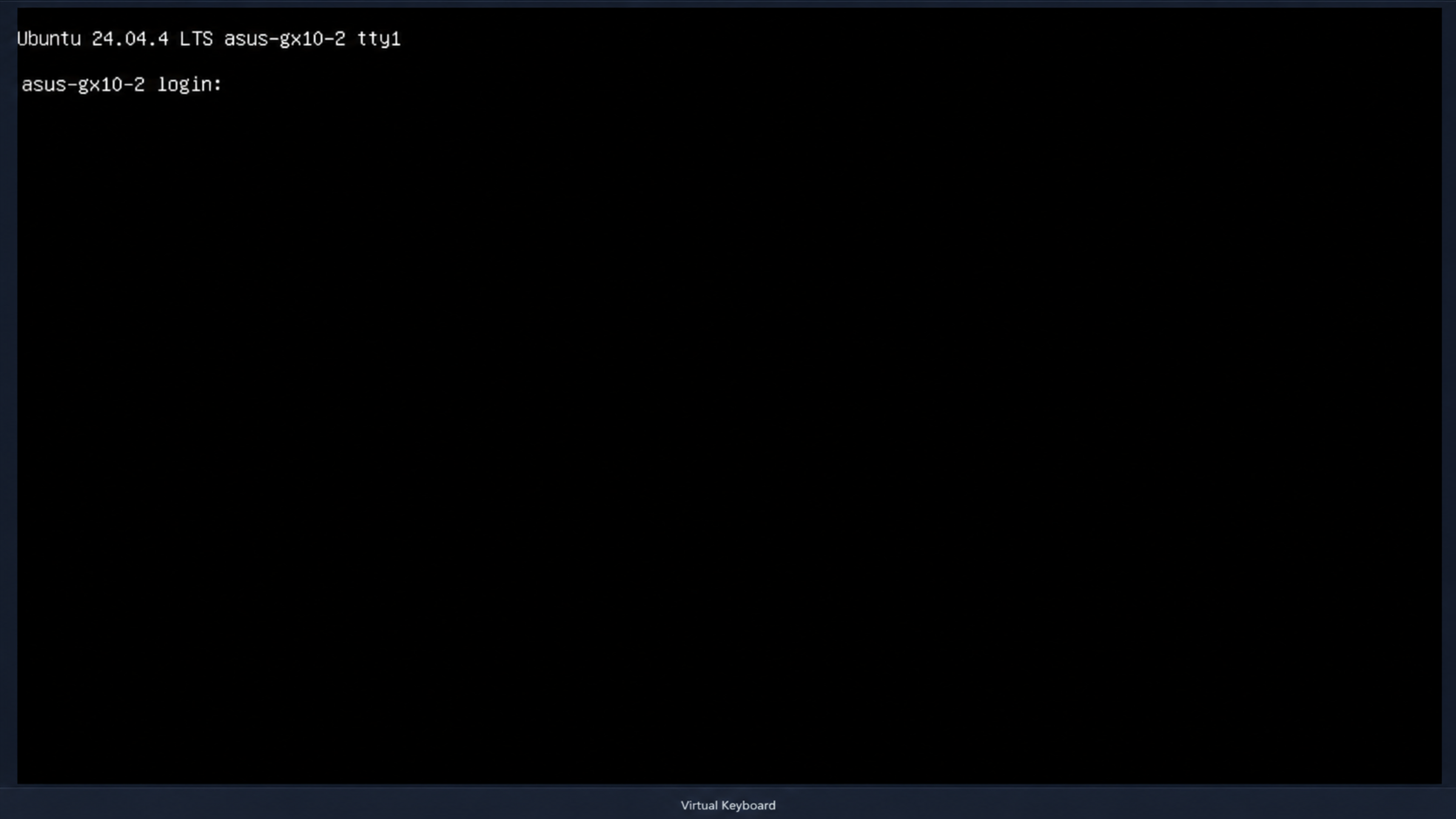

After reboot, the installed system should land at a plain server login prompt.

First boot should land at a plain server login prompt, which is the whole point.

Once you are logged in, the GX10’s network interface name in the installed system often differs from what the live installer detected. Check and fix it if needed:

# Find the actual interface name on the installed system
ip a

# Fix the netplan config if the name doesn't match
sudo sed -i 's/<old-name>/<new-name>/' /etc/netplan/50-cloud-init.yaml
sudo netplan apply

---

Step 2 - NVIDIA Repos, Kernel, Driver, and CUDA

From here on, use NVIDIA’s official ARM64 repositories for the DGX Spark. One tarball installs all the APT sources and GPG keyrings:

curl https://repo.download.nvidia.com/baseos/ubuntu/noble/arm64/dgx-repo-files.tgz \
  | sudo tar xzf - -C /
sudo apt update && sudo apt upgrade -y

Install the core NVIDIA system metapackages. These bundle the DGX-derived platform tuning, monitoring tools, and the driver infrastructure:

sudo apt install -y nvidia-system-core nvidia-system-utils

Info: nvidia-system-extra pulls in Docker CE and the NVIDIA Container Toolkit as dependencies. If you want to manage Docker installation separately, skip the next command and install Docker in Step 3 instead.

sudo apt install -y nvidia-system-extra

Warning: Do NOT install nvidia-system-station - that pulls in a full GNOME desktop environment. This is a server.

Install the Linux perf tools and peermem loader:

sudo apt install -y linux-tools-nvidia-hwe-24.04 nvidia-peermem-loader

Install and boot into the HWE kernel before installing the driver:

sudo apt install -y linux-nvidia-hwe-24.04
sudo reboot

After reboot, confirm the kernel:

uname -r
# Expected: 6.17.0-1021-nvidia

Install the driver. Blackwell (GB10) requires the 580 family or newer, and requires the open kernel modules. The --allow-downgrades flag handles any version conflicts with packages already pulled in by the metapackages:

sudo apt install -y nvidia-driver-pinning-580
sudo apt install -y --allow-downgrades \
  nvidia-driver-580-open \
  libnvidia-nscq \
  nvidia-modprobe \
  datacenter-gpu-manager-4-cuda13 \
  nv-persistence-mode

Warning: Do NOT install nvidia-fabricmanager - that is for DGX systems with NVSwitch hardware. The GX10 does not have NVSwitch.

Enable the persistence daemon and DCGM before rebooting:

sudo systemctl enable --now nvidia-persistenced nvidia-dcgm
sudo reboot

After the second reboot, install CUDA and configure the PATH:

sudo apt install -y cuda-toolkit-13-0

sudo tee /etc/profile.d/cuda.sh > /dev/null << 'CUDACONF'
export PATH=/usr/local/cuda/bin:$PATH
export LD_LIBRARY_PATH=/usr/local/cuda/lib64:${LD_LIBRARY_PATH}
CUDACONF

Verify the driver and CUDA loaded:

nvidia-smi

Expected output on GB10 (UMA platform):

+-----------------------------------------------------------------------------------------+
| NVIDIA-SMI 580.167.08             Driver Version: 580.167.08     CUDA Version: 13.0     |
+-----------------------------------------+------------------------+----------------------+
| GPU  Name                 Persistence-M | Bus-Id          Disp.A | Volatile Uncorr. ECC |
| Fan  Temp   Perf          Pwr:Usage/Cap |           Memory-Usage | GPU-Util  Compute M. |
|=========================================+========================+======================|
|   0  NVIDIA GB10                    On  | 0000000F:01:00.0   Off |                  N/A |
| N/A   40C    P8               5W /  N/A |       Not Supported    |   0%      Default    |
+-----------------------------------------+------------------------+----------------------+

Info: Memory-Usage: Not Supported is expected - no dedicated VRAM to report on a UMA platform. Persistence-M: On confirms the persistence daemon is running.

source /etc/profile.d/cuda.sh
nvcc --version

---

Step 3 - Docker + NVIDIA Container Toolkit

If nvidia-system-extra already pulled in Docker CE and the NVIDIA Container Toolkit, skip the package install block below. You still need to add your user to the docker group and configure the NVIDIA container runtime.

Otherwise:

sudo apt install -y docker-ce docker-ce-cli containerd.io docker-buildx-plugin docker-compose-plugin
sudo apt install -y nvidia-container-toolkit nv-docker-options
sudo systemctl enable --now docker

If you want to run Docker without sudo, add your user to the docker group. Log out and back in for the group change to apply, or use newgrp docker in the current session:

sudo usermod -aG docker $USER
newgrp docker

Configure the NVIDIA container runtime and set it as the default. On a dedicated GPU server, setting NVIDIA as the default runtime means you do not need to add --runtime=nvidia on every docker run. You should still use --gpus=all when you want a container to access the GPU devices.

Warning: This replaces /etc/docker/daemon.json. If you already have custom Docker daemon settings, merge the default-runtime and runtimes entries manually instead of pasting over the file.

sudo tee /etc/docker/daemon.json > /dev/null << 'DOCKERCONF'
{
    "default-runtime": "nvidia",
    "runtimes": {
        "nvidia": {
            "args": [],
            "path": "nvidia-container-runtime"
        }
    }
}
DOCKERCONF
sudo systemctl restart docker

Secure Boot MOK enrollment (required if Secure Boot is on)

The NVIDIA kernel modules are built by DKMS and must be signed for Secure Boot. Check whether the key is enrolled:

sudo mokutil --test-key /var/lib/shim-signed/mok/MOK.der

If the output says “is not enrolled”, queue it:

sudo mokutil --import /var/lib/shim-signed/mok/MOK.der
# Set a one-time password when prompted - you will need it once at the next boot
sudo reboot

Warning: Watch the console immediately after POST. A blue “Perform MOK management” screen appears before GRUB with a ~10 second timeout. Select Enroll MOK, enter your password, and reboot.

After the MOK reboot, verify the driver loads:

nvidia-smi
# Shows GPU info = driver loaded and signed correctly

Verify GPU access from inside a container:

docker run --gpus=all --rm ubuntu:24.04 bash -c "ls /dev/nvidia*"
# Should show /dev/nvidia0, /dev/nvidiactl, /dev/nvidia-uvm

---

Step 4 - Remove nvsm (important for standalone systems)

The NVIDIA repos pull in nvsm, a DGX datacenter fleet management stack. On a standalone non-DGX system, nvsm-core and nvsm-api-gateway crash-loop continuously and notifier_nvsm spins in a Python loop consuming ~14% CPU at idle. Remove it:

sudo apt-get purge -y nvsm
sudo systemctl reset-failed

Warning: On a standalone server, I would remove nvsm. Otherwise you are leaving a CPU drain and a noisy failure source behind.

---

Step 5 - Optional: ConnectX-7 / DOCA-OFED

The GX10 has an NVIDIA ConnectX-7 NIC built in. If you plan to link two GX10s together for multi-node inference, you need the DOCA-OFED drivers:

sudo apt install -y doca-bos8-latest-repo nvidia-repo-keys
sudo apt update && sudo apt full-upgrade -y
sudo apt install -y nvidia-system-mlnx-drivers

Verify the driver loaded:

lsmod | grep mlx5
ibdev2netdev

Two GX10s connected via QSFP give you a 200 Gbps direct NCCL transport link. I use that link for the two-node vLLM Ray cluster in my other post, and DOCA-OFED is what makes the inter-node bandwidth fast enough to matter.

---

Step 6 - Optional: performance tuning

A few settings that matter for a dedicated inference server:

CPU frequency governor. The GB10’s 20-core Grace CPU has 10 efficiency cores (max 2808 MHz) and 10 performance cores (max 3900 MHz). Dynamic scaling works well, but for inference you want cores at max immediately:

sudo apt install -y cpufrequtils
echo performance | sudo tee /sys/devices/system/cpu/cpu*/cpufreq/scaling_governor
echo 'GOVERNOR=performance' | sudo tee /etc/default/cpufrequtils

Swappiness. The GB10 has 128 GB of unified memory. Prevent the kernel from swapping aggressively:

echo 'vm.swappiness=10' | sudo tee /etc/sysctl.d/99-gb10.conf
sudo sysctl -p /etc/sysctl.d/99-gb10.conf

Disable automatic updates. Surprise kernel or driver updates will disrupt inference sessions:

sudo apt-get purge -y unattended-upgrades
sudo systemctl disable --now apt-daily.timer apt-daily-upgrade.timer

Firmware updates. NVIDIA uses fwupd for GB10 platform firmware. Run it after the initial setup:

sudo apt install -y fwupd
sudo fwupdmgr refresh && sudo fwupdmgr get-updates

Disable Wi-Fi. The GX10 has a MediaTek Wi-Fi adapter (wlP9s9). On a hardwired server, I turn it off:

echo 'SUBSYSTEM=="net", ACTION=="add", KERNEL=="wlP9s9", RUN+="/sbin/ip link set %k down"' | \
  sudo tee /etc/udev/rules.d/99-disable-wifi.rules

---

Step 7 - Dual-node ConnectX-7 interconnect

Two GX10s can be directly connected via QSFP cable across their ConnectX-7 ports for a 200 Gbps direct link. That link is what enables multi-node vLLM with tensor parallelism across both machines.

Configure both CX-7 ports with link-local IPv4 on both nodes:

sudo tee /etc/netplan/40-cx7.yaml > /dev/null << 'NETCONF'
network:
  version: 2
  ethernets:
    enp1s0f0np0:
      link-local: [ ipv4 ]
    enp1s0f1np1:
      link-local: [ ipv4 ]
NETCONF
sudo chmod 600 /etc/netplan/40-cx7.yaml
sudo netplan apply

After applying, check which interface shows Up in ibdev2netdev output and use that for your NCCL environment variables.

For the full NCCL bandwidth test procedure and SSH key exchange between nodes, see docs/07-dual-node.md in the repo.

---

The Ansible automation path

For a fresh Ubuntu Server install, the Ansible roles are the easiest path. Once Ubuntu 24.04 is reachable over SSH, the playbook handles the NVIDIA stack, Docker, the Container Toolkit, nvsm removal, DCGM, and CUDA.

The Ubuntu install itself (step 1 above) and the Secure Boot MOK console enrollment still require a keyboard and screen. Everything else is covered.

Two commands handle the rest.

First-time bootstrap (creates the automation user if it does not exist):

cd playbooks
ansible-playbook bootstrap.yml -i <ip>, -u <install-user> --ask-pass --ask-become-pass

Full setup:

Warning: mok_password is a one-time throwaway password that you only need long enough to type at the UEFI console after reboot. Quote the -e value to prevent shell expansion. To keep it out of shell history, prefix the command with a leading space if your shell is configured for it (HISTCONTROL=ignorespace in bash or setopt HIST_IGNORE_SPACE in zsh), or pass it through a temporary vars file and delete the file afterward.

cd playbooks
ansible-playbook site.yml -i <ip>, -e target=all -e 'mok_password=<one-time-password>'

After the playbook completes, reboot the machine and watch the console for the MOK enrollment screen. Enter the password you passed as mok_password. This is the one manual step that the playbook cannot handle.

Verification (33 read-only checks across OS, kernel, Secure Boot, driver, CUDA, Docker, and system hygiene):

ansible-playbook verify.yml -i <ip>, -e target=all

The roles are modular - you can run just the NVIDIA stack, just Docker, or just the dual-node setup by tag:

ansible-playbook site.yml --tags nvidia_stack
ansible-playbook site.yml --tags docker_gpu
ansible-playbook site.yml --tags dual_node

---

What the Ansible playbook actually does

Before running any playbook with become: true on your hardware, it helps to know what it changes.

The nvidia_stack role:

• Downloads and installs NVIDIA’s APT repo files from the official NVIDIA CDN
• Installs nvidia-system-core, nvidia-system-utils, nvidia-system-extra
• Installs the linux-nvidia-hwe-24.04 kernel and reboots
• Installs the 580-series driver pinning package, open kernel modules, and DCGM
• Reboots again to load NVIDIA modules
• Installs cuda-toolkit-13-0 and configures /etc/profile.d/cuda.sh
• Purges nvsm and its orphaned dependencies

The docker_gpu role:

• Installs Docker CE if not already present (from the NVIDIA repos)
• Installs nvidia-container-toolkit and nv-docker-options
• Configures the NVIDIA container runtime as Docker’s default
• Optionally queues MOK key enrollment if mok_password is provided

The dual_node role:

• Deploys the 40-cx7.yaml netplan config for both CX-7 interfaces
• Generates SSH keys and exchanges them between nodes for passwordless access over the inter-connect
• Installs NCCL development packages and Open MPI
• Builds nccl-tests for validation

All tasks are idempotent - running the playbook twice produces the same result.

---

Post-install verification

After setup (manual or Ansible), verify the key components:

# GPU and driver
nvidia-smi
# CUDA compiler
nvcc --version
# Persistence mode on
nvidia-smi --query-gpu=name,persistence_mode --format=csv,noheader
# DCGM health check
dcgmi health -g 0 -c
# GPU access from inside a container
docker run --gpus=all --rm ubuntu:24.04 bash -c "ls /dev/nvidia*"
# Memory available (use /proc/meminfo on UMA platforms)
grep -E 'MemTotal|MemAvailable' /proc/meminfo

---

The one gotcha: the Realtek 10GbE chip

The GX10 has two network controllers: the ConnectX-7 high-speed NIC and a separate Realtek RTL8127 10GbE RJ45 port. After wiping DGX OS and installing Ubuntu, the Realtek chip can disappear from the PCIe bus entirely.

It looks like a hardware failure at first, but in my testing it came down to two things:

1. BIOS Fast Boot skips executing PCIe NIC Option ROMs at POST. The Realtek chip never fully initializes. Fix: disable Fast Boot in BIOS (Boot tab).

2. The Ubuntu installer deletes all non-Ubuntu UEFI boot entries, including the Realtek PXE entry the BIOS uses as a signal to initialize the chip. Without that entry, the chip’s PCIe Data Link Layer stays inactive even with Fast Boot disabled.

After disabling Fast Boot, you need a genuine cold boot (power off, remove AC, wait 30 seconds, restore AC). A warm reboot is not sufficient - the PCIe capacitors need to discharge.

After the cold boot, 0007:01:00.0 will appear in lspci and the r8127 driver will bind automatically. The full diagnosis and fix is in docs/04-doca-ofed.md.

---

Is this for you

If you just bought a GX10 or DGX Spark and want the path of least resistance, DGX OS is fine. NVIDIA has already done the work and it boots into a working GNOME environment with everything installed.

I would use this path when you want:

• A server OS that starts with 118 GiB available instead of 116 GiB
• No desktop environment consuming GPU memory on a machine built to run LLMs
• Fewer installed packages, which means less patching, less bloat, and less attack surface
• Control over update cadence - driver and kernel upgrades on your schedule
• A repeatable Ansible-based setup you can run against multiple machines
• A minimized Ubuntu Server base instead of NVIDIA’s full desktop image

The NVIDIA stack you end up with is the same either way. The difference is how much of the 128 GB is actually available for your models when you get there.

---

Where to Buy

• NVIDIA DGX Spark: NVIDIA / Amazon
• ASUS Ascent GX10: ASUS / Amazon

(Affiliate links. I may receive a small commission at no cost to you.)

---

Links

• Repository: github.com/timothystewart6/ubuntu-gb10
• DGX OS 7 User Guide (NVIDIA’s reference): docs.nvidia.com/dgx/dgx-os-7-user-guide
• My GX10 cluster writeup: technotim.com/posts/local-ai-gx10
• My vLLM image for GB10: technotim.com/posts/vllm-gb10-docker
• vLLM image repository: github.com/timothystewart6/vllm-gb10

---

🤝 Support the channel and help keep this site ad-free

⚙️ See all the hardware I recommend at https://l.technotim.com/gear
